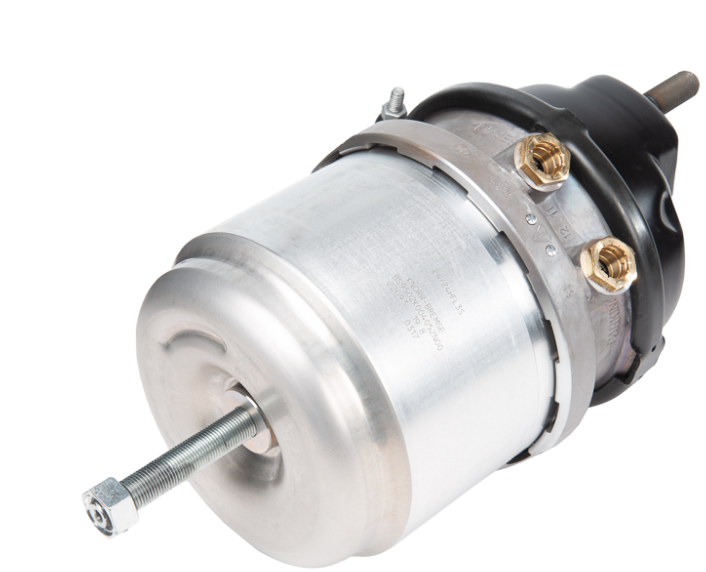

ΦΥΣΟΥΝΑ BS9502 T24/24 DISC KNORR-BREMSE

• Mounting bolt centres [mm] 120 , 7
• Mounting bolt thread size M16x1 , 5
• Spring portion output force @ 35mm stroke [kN] 10.600 kN
• Spring portion output force @ 25mm stroke [x100N] 113.0
• Stroke (stroke of service/stroke of spring portion) [mm] 64/64
• Spring Portion Diameter [mm] 191 mm
• Mounting stud length [mm] 43 mm
• Weight [Kg] 9.80 kg
• Has opposite handed version K004053000
• Service Portion Port(s) size Voss 232 M22x1 , 5
• Spring Portion Port(s) size Voss 232 M22x1 , 5
• Service Portion Type (Diaphragm size) 24
• Spring Portion Type 24HFL3
• Spring Portion Version Piston
• Push rod length (to yoke pin centre if fitted) [mm] 15 mm
